MTS Technik
Coilover Kit Street Abarth 500 / 595 / 695
Regular price
£797.99

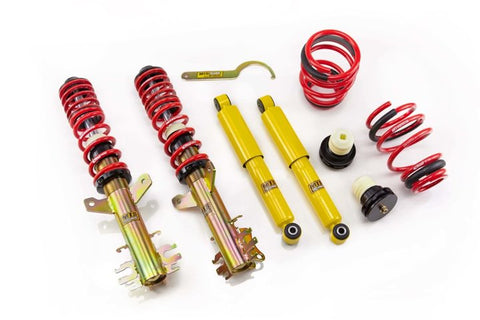

Coilover Kit Street Abarth 500 / 595 / 695
Coilover Kit MTS Technik for Abarth 500 / 595 / 695, lowering the front axle between 10 - 50 mm, and rear between 30 - 65 mm. Dedicated for the years of: 01/08 -, for the engine version: 1.4 (312.AXD1A) / 1.4 (312.AXF11, 312.AXF1A) / 1.4 (312.AXF11, 312.AXF1A, 312.AXD1A) / 1.4 (312.AXF1A, 312.AXD1A) / 1.4 (312.AXT1A) / 1.4 (312.AXY11, 312.AXY1A) / 1.4 (312.AXZ11) / 1.4 (312.AYB11, 312.AYB1A).
| Series: | Street |
| Housing: |
gold
|
 Max. Axle Load FA:
|
-830 kg
|
|
Max. Axle Load RA:
|
-735 kg
|
| Lowering FA: |
10 - 50 mm
|
| Lowering RA: |
30 - 65 mm
|
| Camber / top mount FA: |
no
|
| Camber / top mount RA: |
no
|
| Coilover Main Spring (Front): |
Spring rate (50 N/mm)
|
| Coilover Helper Spring (Front): |
Spring rate (20 N/mm)
|
| Coilover Main Spring (Rear): |
Spring rate (23,5 - 34 - 85 N/mm)
|
| TUV Certificate: |
yes
|

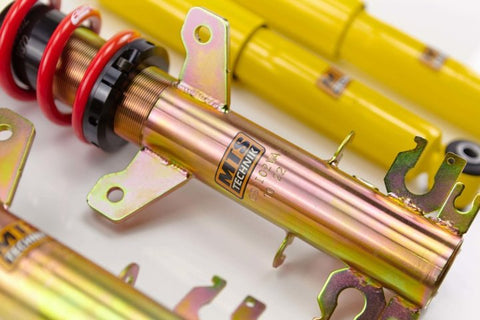

3 - Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear).
21 - If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
24 - During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
73 - For easier height adjustment, we recommend removing the rear adjustment, changing the position of the spring plate and reinstalling the adjustment on the car.
