MTS Technik
Coilover Kit Street BMW 3 (E30)
Regular price
£526.79
Coilover Kit Street BMW 3 (E30)

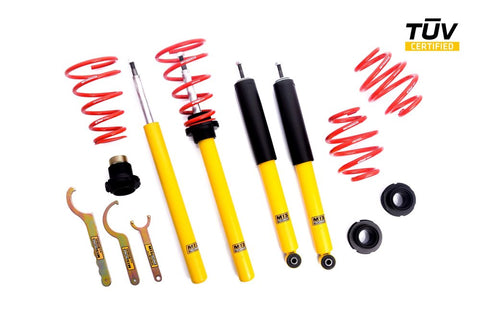

Coilover Kit MTS Technik for BMW 3 (E30), lowering the front axle between 30 - 65 mm, and rear between 25 - 60 mm. Dedicated for the years of: 09/82 - 12/91, for the engine version: 315 / 316 / 316 i / 318 i / 318 is / 320 i / 323 i / 324 d / 324 td / 325 e 2.7 / 325 i.
| Series: | Street |
| Housing: |
gold
|
| Max. Axle Load FA: |
-865 kg
|
| Max. Axle Load RA: |
-1030 kg
|
| Lowering FA: |
30 - 65 mm
|
| Lowering RA: |
25 - 60 mm
|
| Camber / top mount FA: |
no
|
| Camber / top mount RA: |
no
|
| Coilover Main Spring (Front): |
Spring rate (29 N/mm)
|
| Coilover Main Spring (Rear): |
Spring rate (46 - 90,1 N/mm)
|
| Info: |
strut diameter at the front axle of 51 mm
|
| TUV Certificate: |
yes
|
Product Notes
8 - Not for 4x4.
16 - Front and rear height adjustable axle (front and rear springs with height adjustment element + shock absorbers).
21 - If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
24 - During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
33 - Including M-Technik.
73 - For easier height adjustment, we recommend removing the rear adjustment, changing the position of the spring plate and reinstalling the adjustment on the car.
